Renewables in Energy Supply

2024

Solar Thermal Heating


Key Facts
Solar Thermal Heating

  • The global market for solar thermal collectors contracted 7.2% in 2023, to reach a newly installed capacity of 21 GWth .
  • Small-scale systems have lost market share in several regions, but demand for large-scale projects has risenin recent years.
  • Globally, 337 large-scale solar thermal district heating systems, with total capacity exceeding 1.9 GWth, were operating by the end of 2023.
  • In 2023, 116 solar industrial heat plants (SHIP) began operation, bringing the global total to at least 1,209 installations supplying process heat.
  • Solar thermal heating technologies continued to face market competition due to a lack of awareness and an imbalance in incentives.

Solar thermal collectors absorb radiation from the sun and transform it into useful thermal energy for various heat i applications, ranging from domestic water and space heating to high-temperature heat and steam for industrial processes. In 2023, the global solar heat market contracted 7.2% to reach a newly installed capacity of an estimated 21 gigawatts-thermal (GWth) ii ,continuing the downward slide since 2013 (excepting 2021). 1 Sales grew strongly in several markets including the United Kingdom (up 65%), Mozambique (40%), India (27%), South Africa (12.4%), Lebanon (11.2%) and Greece (10%). 2 However, sales declined in several traditionally strong markets, such as China and much of Europe iii . 3

By year's end, millions of residential, commercial and industrial clients in at least 134 countries were benefiting from solar thermal heating systems. 4 Cumulative global capacity in operation increased 3% in 2023, reaching an estimated 560 GWth (800 million square metres, m2, of collector area iv ). 5 (See Figure 31.) The total global capacity of solar water collectors in operation was enough to provide around 456 terawatt-hours of heat annually, equivalent to the energy content of 268 million barrels of oil. 6

Despite energy price volatility in recent years, solar thermal continued to face fierce market competition due to a lack of awareness of solar thermal options and an imbalance in policies and utility incentives in many countries. 7 The competition was mainly from solar photovoltaics (PV) but also from heat pumps and (less so) from biomass boilers, both of which offer stand-alone solutions for hot water and/or space heating. 8 As a result, small-scale solar thermal systems have lost market share across much of Europe, the United States and China. 9 Meanwhile, demand for large-scale projects has risen, with several multi-megawatt plants under construction for commercial and industrial clients. 10

Top Country Markets

The top markets in 2023 were China, India, Brazil, Türkiye and the United States.

China remained the largest market for solar thermal systems of all types and accounted for around 65% of annual sales of solar water collectors in 2023, followed by India, Brazil, Türkiye and the United States; Greece, Australia, Mexico, Germany and Italy rounded out the top 10. 11 (See Figure 32.) At year's end, China accounted for 73% of cumulative world solar thermal capacity, followed distantly by Türkiye, the United States, Brazil, Germany and India. 12 For total capacity per capita, the top countries in 2022 were Barbados, Cyprus, Israel, Austria and Greece. 13

China's solar thermal sales continued the decline that began in 2014 (except for a slight rise in 2021), falling 8.5% in 2023. 14 An estimated 13.7 GWth began operation for a year-end total of 410.1 GWth. 15 The drop was attributed to the country's real estate crisis and economic slowdown. 16 By 2023, China's energy savings from the use of solar thermal technologies exceeded an estimated 1.1 billion tonnes of standard coal. 17

Sales of vacuum tube collectors in China fell 8.5% to 10.2 GWth, accounting for three-quarters of total sales, while flat plate sales declined 11.8% to 3.6 GWth. 18 The engineered market v (76.3%) continued to dominate, although its share was down from 83% in 2022, and the retail market accounted for the rest. 19 Water heating remained the primary use for solar thermal systems in China, although the market for space heating continued to expand (up 11%). 20

India's market grew 27% in 2023, moving the country into second place for new installations.

Following a significant (21%) decline in 2022, India's solar thermal market grew 27% in 2023, moving the country into second place globally for new installations. 21 India's increase was due largely to an easing of the financial system after the COVID-19 pandemic, although falling solar PV prices and India's net metering system have continued to make rooftop-generated electricity more desirable than solar heat generation on roofs. 22 The country added 1.3 GWth for an estimated total of 14.8 GWth. 23 Sales of vacuum tube collectors rose 24% after a decline in 2022, whereas flat plate collector sales rose 79%, in a positive note for a stressed domestic manufacturing industry. 24

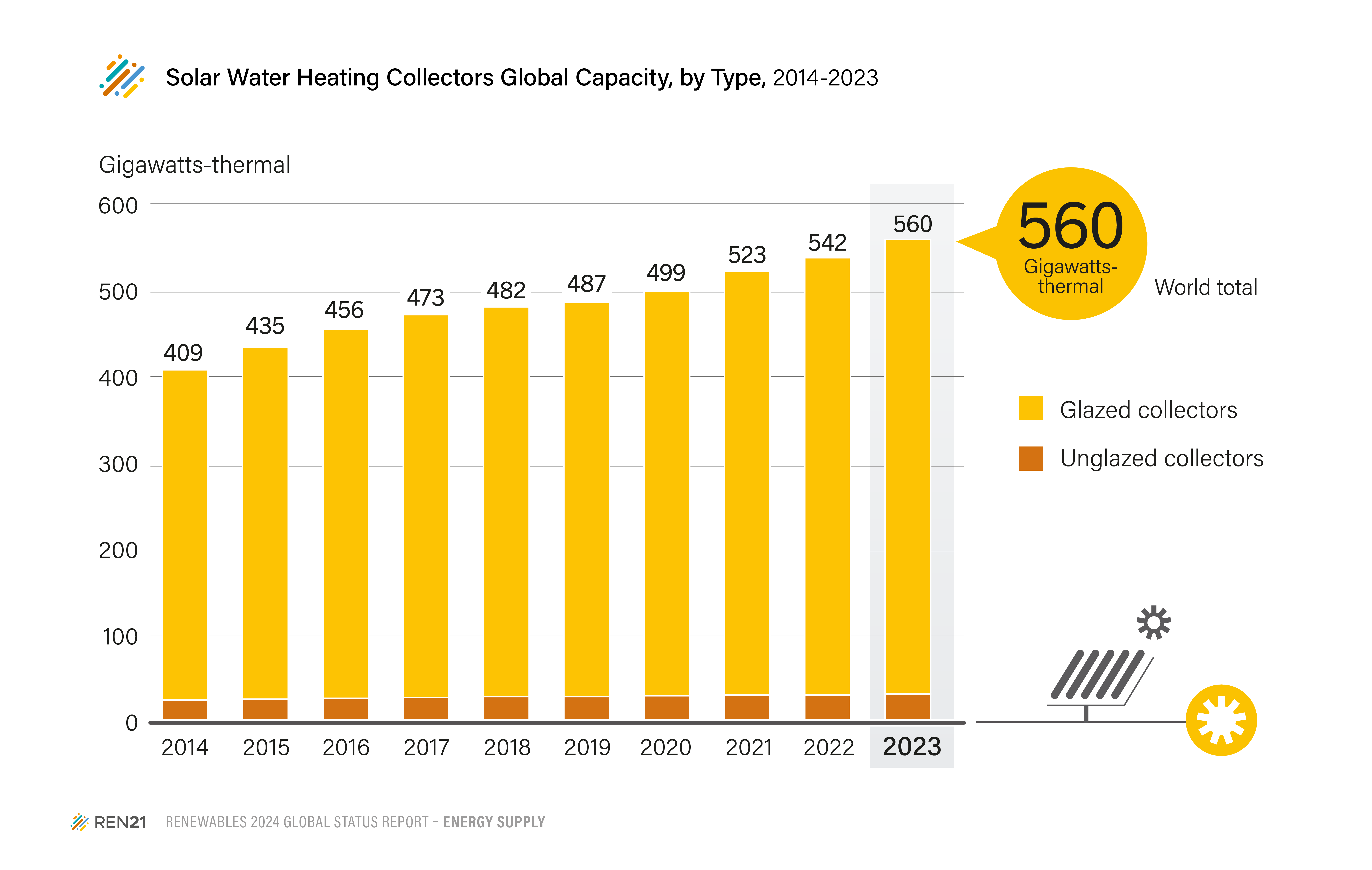

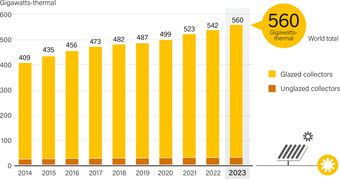

FIGURE 31Solar Water Heating Collectors Global Capacity, by Type, 2014-2023

FIGURE 31

Note: Data are rounded to nearest GWth. Data are for glazed and unglazed solar water collectors and do not include concentrating, air or hybrid collectors.

Source: See endnote 5 for this section.

Closely behind India, Brazil added a record 1.28 GWth (1.83 million m2) of solar thermal systems in 2023, with unglazed collectors for swimming pools accounting for 47% of the newly installed collector area. 25 The market for collectors expanded 2.8% in 2023, following a 2.1% decline in 2022. 26 The smaller-than-expected increase was due to economic uncertainties and a lack of financing and public incentives. 27 By region, Brazil's south-east accounted for 65% of sales, and the largest market nationally remained the residential sector (84%). 28 Brazil's total operating capacity grew 8% in 2023, to 16.8 GWth (24 million m2). 29

Most solar thermal systems in Türkiye are residential water heaters; however, systems also have been installed in hotels, hospitals, and other facilities, ranking the country second after China for the number of large systems in operation. 30 The payback periods for solar thermal along the Mediterranean coast are relatively short due to high irradiation and a good match between hot water demand and the high solar yield season. 31 In 2023, Türkiye added 1.26 GWth (1.8 million m2) for a cumulative capacity of 19.4 GWth. 32 A 2.6% market decline was due mainly vi to high inflation and to damage from the February earthquake, which affected more than 10 south-eastern cities. 33

The United States ranked fifth for solar thermal sales in 2023 (adding 417 megawatts-thermal, MWth), bringing the total installed capacity to 18.2 GWth. 34 New installations fell 32.7% relative to 2022. 35 Despite federal and state incentives, the US market has declined steadily over several years for glazed systems used for residential and commercial heating due to a focus on heat pumps, electrification of heat and solar PV. 36 An exception is Hawaii, which dominates the glazed collector market and where one-in-four homeowners use solar systems to heat water. 37 In 2023, 95% of the US market was for unglazed collectors (396 MWth), putting the country second after Brazil for new solar pool heating systems. 38

Australia followed for installation of unglazed collectors, ranking third, and placed seventh globally for total solar thermal additions in 2023, despite a 8.4% decline. 39 Australia installed 312.5 MWth (446,421 m2), with unglazed collectors representing nearly 74% of additions. 40 The state of Victoria accounted for around 40% of the national market due to a mandate for solar thermal systems on new homes. 41 At year's end, Australia had an estimated 6.6 GWth (9.5 million m2) in operation. 42

Mexico placed eighth among the top 10 markets of 2023. The country installed 309 MWth (441,590 m2), up 5.1%, for a total of 4.5 GWth. 43 Mexico also has a large unglazed collector market, accounting for nearly 27% of 2023 additions. 44

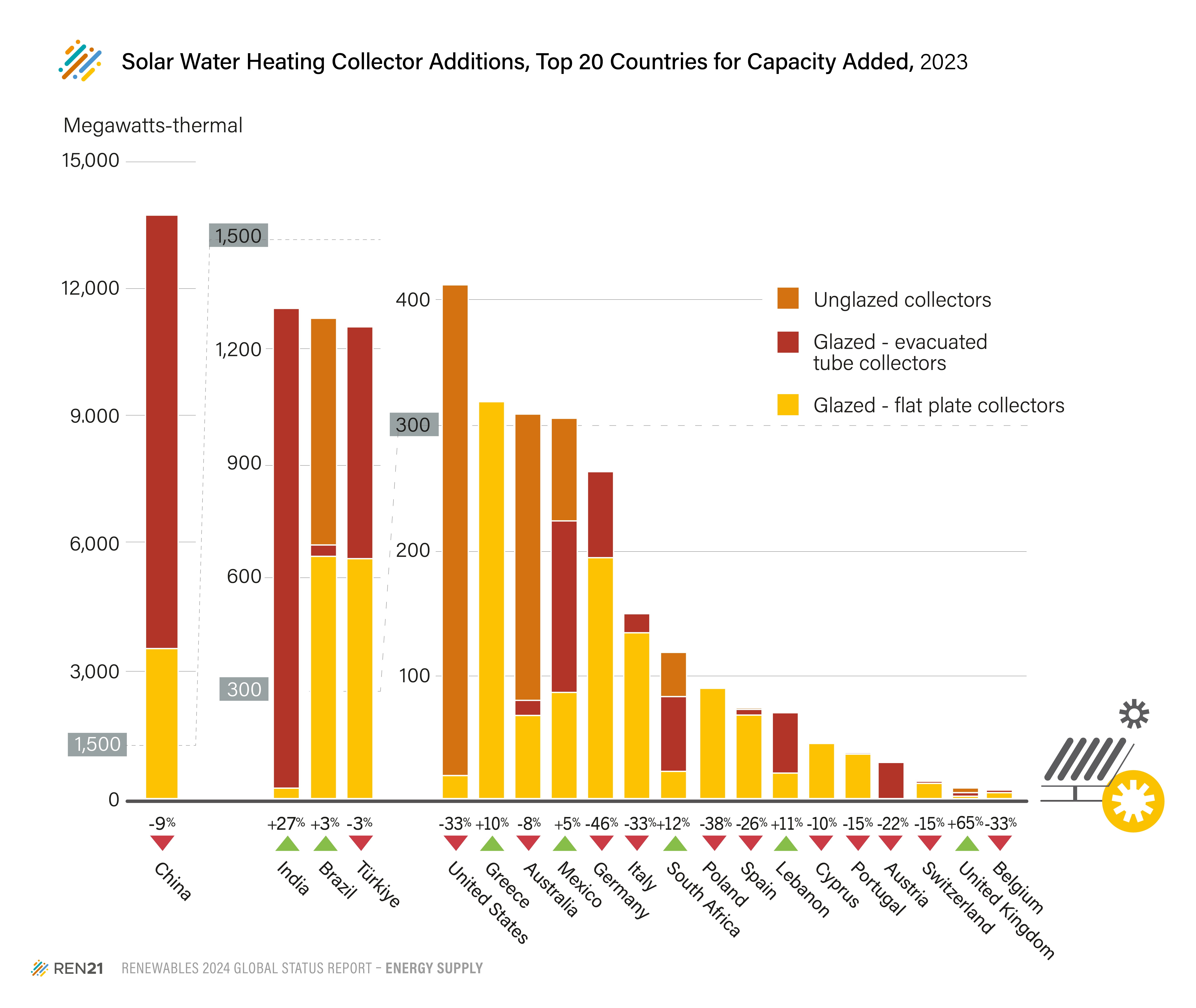

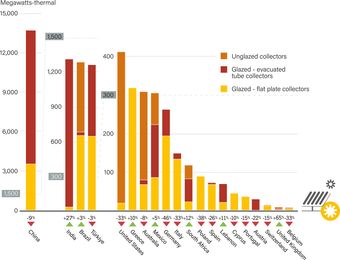

FIGURE 32.Solar Water Heating Collector Additions, Top 20 Countries for Capacity Added, 2023

FIGURE 32.

Note: Additions represent gross capacity added. Growth rates of annual market are rounded to the nearest whole number.

Source: See endnote 11 for this section.

The remaining top 10 solar thermal countries were all in Europe. Unlike in many other large markets (including Türkiye, Brazil and India), where solar water heaters are cost-effective compared to electricity-driven solutions, in most European countries (and much of the United States) financial incentives are still needed to reduce upfront investment costs, due to higher equipment and labour costs and in some cases lower solar resources. 45 In 2023, market strength varied considerably across Europe, with improvements in countries with balanced policies and incentives but substantial contractions in countries supporting solar PV and heat pumps. 46 Falling fossil gas prices towards the end of the year also affected markets for most heating technologies. 47

Greece passed Germany to rank sixth globally and to lead in Europe for new installations. 48 The country added a record 323 MWth (460,300 m2), bringing the total to 4 GWth (5.7 million m2). 49 Annual installations were up 10%, following a 17% increase in 2022. 50 The Greek market has been driven largely by high electricity prices and a desire to shift away from fossil fuels. 51

In Europe's other top markets, annual installations declined in 2023. In Germany, which placed second in Europe and ninth globally, annual sales were down sharply (46%), following three years of stability or growth. 52 An estimated 51,000 solar thermal systems were added, totalling 266 MWth (380,000 m2). 53 While the energy crisis of 2022 brought increased interest in solar thermal for space and water heating, this interest dropped off in 2023. 54 Slower demand combined with the dismantling of old systems meant that total operating capacity barely rose, reaching an estimated 15.8 GWth (22.6 million m2).55 Germany's heat production from solar thermal collectors fell around 6%, due largely to a decline in average solar radiation. 56

After two years of explosive growth (43% in 2022 and 83% in 2021), following a decade of decline, Italy's solar thermal market again contracted. 57 Sales fell 33% in 2023 to 151.4 MWth (216,288 m2), for a total of 3.9 GWth (5.6 million m2) in operation. 58 The large drop was due to a change in the Superbonus subsidy scheme, delays in Italy's economic recovery plan and a general decline in heating installations. 59 Other traditionally strong markets in Europe, including Poland (-38%) and Spain (-26%), also witnessed substantial market contractions in 2023, as solar hot water systems struggled to compete with alternatives. 60

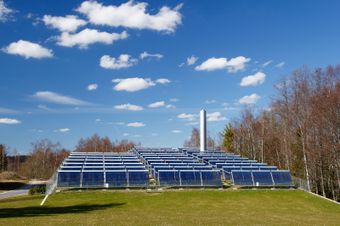

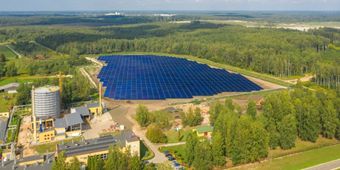

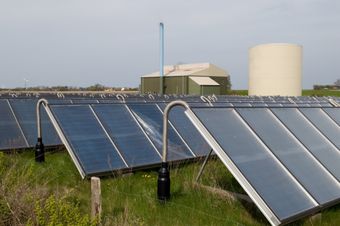

District Heating

Although most solar thermal capacity installed globally continued to provide water heating in individual buildings, the use of solar thermal technology in district heating continued to expand. Under favourable conditions, solar thermal energy is a cost-effective vii option for decarbonising urban district heat systems. 61 In 2023, China was the leading market for newly installed collector area, followed by Germany, Austria and Denmark. 62 By year's end, a documented 337 large-scale viii solar thermal district heating systems were operating worldwide, with a total capacity exceeding 1.9 GWth (2.73 million m2); many of these systems include storage capacity to address seasonal variability. 63

China reported commissioning five systems for district heating in 2023, with a combined collector area of 147,206 m2 (103 MWth). 64 Four of the projects, completed in Tibet, are among the 20 largest solar district heating systems in the world and have a combined capacity of 102 MWth. 65 By the end of 2023, China had 72 solar district heating systems in operation, for a total capacity of 503 MWth (718,670 m2). 66


Across Europe, 266 of the around 6,000 cities and towns with district heating systems were feeding solar heat into their grids as of mid-2023. 67 The largest number of systems at year's end was in Denmark (124), followed by Germany (55), Sweden (23) and Austria (20). 68

Germany's district heating market continued to build on the 30% growth in collector area that occurred in 2022. 69 In 2023, seven large-scale plants were completed with a combined collector area of 22,794 m2 (16 MWth), mostly for district heat systems in small towns and municipalities. 70 As of early 2024, Germany had 55 plants (112 MWth) in operation, 9 systems (79 MWth) in the realisation phase and 70 systems (277 MWth) in preparation. 71 The market for solar thermal in district heating has been driven by the technology‘s potential to achieve climate protection goals while stabilising prices and improving energy security. 72 Local energy co-operatives have initiated a growing number of projects ix . 73


In 2023 and early 2024, Germany began construction on plants in Bad Rappenau (20 MWth) and Leipzig (45.5 MWth), the latter of which will generate more than triple the output of the country's largest operating system x . 74 Increasingly, suppliers of large turnkey solar thermal plants in Germany are guaranteeing minimum yields to reduce investor risk. 75

Austria ranked third globally for new installations in 2023, thanks to two extensions to existing projects. 76 A total of 2,173 m2 of collector area (1.5 MWth) was added to solar district heating systems in St. Ruprecht/Raab and in the city of Mürzzuschlag. 77 The plants fall under a subsidy scheme granted by Austria's Climate and Energy fund for large solar collector fields. 78

Denmark added only one solar thermal district heating system (2,000 m2) in 2023, following the addition of one system in 2022, for a year-end total exceeding 1.1 GWth (1.6 million m2). 79 Long the leader in annual installations, Denmark's market collapsed in 2020 after significant changes in policy and funding conditions, and as of 2023 the country had fallen to fourth globally for newly installed large-scale plants. 80

Although most solar district heating systems are installed in Europe and China, systems also are operating in Canada, Japan, the Kyrgyz Republic, the Russian Federation, Saudi Arabia, South Africa and the United States. 81 Solar thermal is more efficient at meeting low-temperature heat needs than a heat pump or solar PV system used for the same purpose. 82 Despite its potential, solar thermal in district heating faces obstacles including a lack of awareness about its benefits; challenges finding suitable sites near heat demand; and lengthy and costly permitting processes, which have caused bottlenecks across Europe. 83

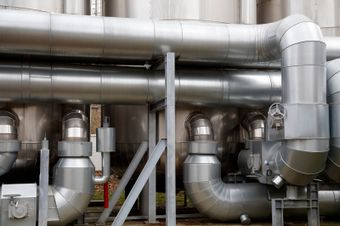

Industrial Heat

Industrial heat accounts for almost 20% of global energy consumption and relies heavily on fossil fuels, but there is growing interest in solar thermal energy, particularly for industries that are difficult to decarbonise. 84 Around the world, companies are turning to renewable heat solutions, including solar heat technologies, to meet social and environmental goals and to achieve energy price stability xi . 85

Across industries, supply chains require direct heat or steam for a range of processes xii . 86 Solar thermal technologies provide emission-free low-temperature (below 150 degrees Celsius, °C) or medium-temperature (150-400°C) heat in the form of hot water, air flow or steam xiii . 87

In 2023, 116 solar industrial heat plants (SHIPs) began operation; although the number of projects remained the same as in 2022, the capacity installed in 2023 (94 MWth) more than tripled xiv . 88 By year's end, at least 1,209 SHIP installations, totalling 951 MWth, were supplying process heat to factories worldwide. 89 Food and beverage industries had the largest number of systems (199), and the mining sector had the largest share (47%) of total operating capacity. 90

116 SHIP systems were added for a total of at least 1,209 operating worldwide.

Individual SHIP projects have gotten larger, and the share of systems with temperatures above 100°C has grown rapidly. 91 The type of collectors is determined in part by required temperatures, with air collectors, flat plate and evacuated tube collectors xv providing temperatures up to 100°C, and concentrating collectors providing temperatures up to 400°C. 92 In 2023, at least eight different technology types xvi were installed; the share of concentrating collectors in newly added capacity increased to 43% of collector area (up from 21% in 2022 and 22% in 2021). 93

The top countries for newly commissioned SHIP projects were unchanged, although shifts occurred in the rankings xvii : the Netherlands remained well in the lead with 43 new systems added, followed by Mexico, Germany, China and France. 94 Spain installed by far the greatest amount of capacity (49.2 MWth), followed by France and China (11.1 MWth each), the Netherlands (6.8 MWth) and Belgium (3.9 MWth). 95 The top European countries have implemented support systems, whereas Mexico and China have long been top markets without direct subsidies thanks to very cost-effective systems. 96

Among significant projects that began operations in 2023 were Europe's largest SHIP plant, a 30 MWth (plus 68 megawatt-hours of storage) concentrating system in Seville, Spain, which is expected to reduce fossil gas consumption by more than 60% at Heineken España's facility; a 13 MWth (with 3,000 m2 of storage) system at a whey production facility for a global dairy manufacturer (Lactalis) in France; and the world's largest solar concentrating dish unit – to replace biomass briquettes for production of steam for cooking, sterilisation and laundry – at a hospital in Gujarat, India. 97

SHIP remains a challenging sector because awareness of the options remains low, clients typically want short payback periods, and projects require significant lead time xviii . 98 Heat purchase agreements, which minimise the market risk for investors, are increasingly common, particularly for large-scale plants using concentrating collectors. 99 Heat purchase agreements have moved SHIP into new markets. 100 In 2023, for example, such agreements were signed for large SHIP plants (totalling 154 MWth) for Chile's copper mining sector. 101

As of early 2023, there were 68 SHIP suppliers from 25 countries. 102 Relative to 2022, 10 companies shifted their portfolios or closed down, and 7 companies were added. 103 Although the potential for growth is significant, it is challenging to build a sustainable market with the long sales cycle for industrial clients, rising interest rates, competition from solar PV and heat pumps, and low fossil gas prices in many countries. 104 In Mexico, for example, the highly competitive SHIP market has traditionally been strong, but it suffered in 2023 from falling gas prices. 105

GlassPoint (United States), which restarted operations in 2022 following liquidation in 2020, has deployed more than half of all solar steam systems for industry and helped accelerate use of the energy-as-a-service model. 106 In 2023, the company announced a partnership with Saudi Arabia to build a manufacturing facility for projects across the country and for export, and broke ground on the Ma'aden project xix , which is expected to be five times larger than any existing solar heat facility. 107

Numerous start-ups, including Heliovis (Austria) and SolarSteam (Canada), also are innovating in this sector, scaling up production capabilities and initiating commercial projects. 108


As in other sectors, there is a growing interest in combining SHIP systems with thermal energy storage. 109 More than 30 companies (mostly start-ups), based in at least 12 countries, are providing high-temperature thermal storage to meet rapidly expanding demand. 110 A wide range of technologies xx can store heat from a few hours to several days, making it possible for concentrating solar thermal systems to provide 24-hour heat, or to store surplus electricity from the grid using power-to-heat solutions for industrial clients. 111 Several companies put commercial storage into operation in 2023, while others announced that their first commercial plants were under construction. 112

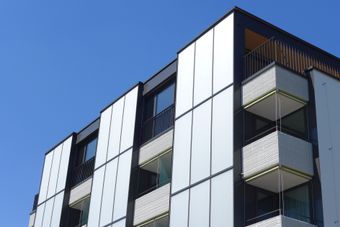

PV-Thermal Technologies

PV-Thermal xxi (PVT) technologies convert solar energy into both electricity and thermal energy for applications spanning from single households to industry, with temperatures ranging from around – 20°C to 150°C. 113 The heat can be used directly or via secondary systems, such as heat pumps. 114

More than 30 companies are providing high-temperature thermal storage for SHIP systems.

There is rising interest in PVT, particularly across Europe, with steady market growth from 2017 through 2021. 115 However, following a slump (down 52%) in 2022 – due to discontinued subsidies, inflation and the war in Ukraine – the market contracted further in 2023. 116 Systems completed in 2023 included those for a swimming pool club in Barcelona, Spain, apartments in Switzerland, an industrial customer in the Netherlands and a nursing home in Germany (the latter two systems are combined with heat pumps). 117 Worldwide, an estimated 56,967 m2 (29.5 MWth, 14.5 MWpeak) was added in 2023, bringing the global capacity in operation to nearly 1.6 million m2 (822 MWth, 292 MWpeak), up from just over 1 million m2 in 2017. 118 The majority of this capacity was in Europe (led by France), followed by Asia. 119

To meet anticipated future demand, Abora Solar (Spain) commissioned an assembly line in 2023 to increase PVT production. 120 As of early 2024, Sunmaxx PVT (Germany) was constructing a new production plant, and other established manufacturers had announced significant new production capacities. 121


Footnotes

i Solar thermal energy also can be used for cooling and chilling purposes, but this remains a niche market.

ii Global data are for solar thermal water collectors (glazed and unglazed) only.

iii Traditionally strong markets that experienced declines in 2023 included Germany (-46%), Poland (-38%), Italy (-33%), the United States (-32.7%), Spain (-26%), Austria (-21.6%), Portugal (-15%), Denmark (-12%), Cyprus (-9.7%), China (-8.5%), Australia (-8.4%) and Türkiye (-2.6%). See endnote 3 for this section.

iv Conversion from square metres (m2) to capacity uses a factor of 0.7 kilowatts-thermal (kWth) per m2 based on the agreement of international solar thermal experts in Gleisdorf, Austria in 2004.

v Chinese statistics characterise systems as either standardised small residential solar water heaters or “engineered” systems, which include larger systems used in, for example, industry, agriculture, public institutions and residential housing projects.

vi Subsidies for fossil gas (zero-cost up to 25 cubic metres), provided to every household monthly through much of the year, also probably affected sales, although the impact is difficult to measure. See endnote 33 for this section.

vii Solar thermal can provide costs in the range of USD 22-55.2 (EUR 20-50) per MWh under favourable conditions, well below the prices customers pay for district heating. See endnote 61 for this section.

viii Solar district heating systems are considered to be large-scale if they are more than 350 kilowatts-thermal (500 m2). Globally, 600 large-scale solar thermal systems were in operation at the end of 2023, with a total installed capacity of 2,370 MWth (3.4 million m2), including systems for heating large residential, commercial and public buildings. See endnote 63 for this section.

ix In September 2023, Germany introduced a federal subsidy for efficient heating networks that includes large-scale solar thermal projects and is available to municipalities, energy suppliers and energy communities. See endnote 73 for this section.

x The largest German system in operation at the end of 2023 was in Greifswald, at 13.1 MWth (18,732 m2).

xi Significant energy price volatility has increased interest in solar thermal solutions; however, those same price fluctuations have slowed decision processes as industrial companies are uncertain about at what level it is most attractive to lock in a price. See endnote 85 for this section.

xii Industries include chemical (boiling, distilling), food and beverage (drying, boiling, pasteurising, sterilising), machinery (cleaning, drying), mining (copper electrolytic refining, mineral drying, nitrate melting), textile (washing, bleaching, dying) and wood (e.g., steaming, compressing, drying).

xiii Solar thermal collectors and sorption chillers also can provide cold energy, down to -40C, for process refrigeration, although this is still a niche market. See endnote 87 for this section.

xiv More capacity was added during 2017 and 2019 because of very large installations during those years in Oman and China.

xv In addition, stationary collectors with vacuum as insolation can achieve temperatures higher than 100°C. See endnote 92 for this section.

xvi These included parabolic trough (38% of collector area, up from 12% in 2022), vacuum tube (26%), air collectors (17%), flat plate (12%, down from 39% in 2022), linear Fresnel (4%), PVT (1%), high-temperature flat plate (1%) and concentrating dish (0.6%). See endnote 93 for this section.

xvii The Netherlands led in 2022 for number of systems added, followed by China, France, Mexico and Germany. See endnote 94 for this section.

xviii In addition to project contracting, planning and construction, industry decisions have been slowed by as much as 6-12 months because many potential consumers want to apply for government subsidies, even when solar thermal systems are offered at a competitive price. See endnote 98 for this section.

xix The plant will replace fossil gas in the refining of bauxite into alumina, and is expected to reduce the company's carbon footprint by an estimated 50%, with the aim of helping to decarbonise the aluminium supply chain in Saudi Arabia. See endnote 107 for this section.

xx The technologies used depend on required temperatures, with some solutions able to store at temperatures up to around 2,000°C. For temperatures above 565°C, systems use solid materials such as sand, graphite, concrete blocks, granite or even steel rods. See endnote 111 for this section.

xxi PVT systems perform like flat plate solar thermal collectors but with slightly lower thermal performance because PV cells absorb some of sunlight; the cooling effect on solar PV cells offsets any output losses due to front glass. See endnote 113 for this section.
